Description

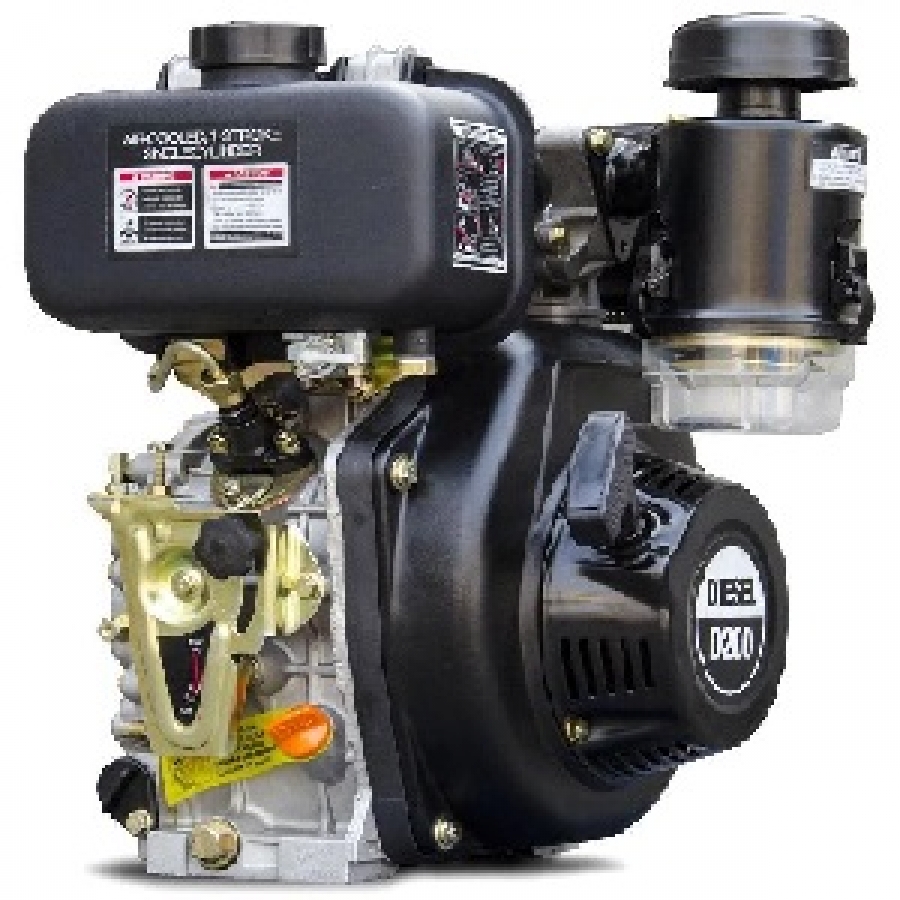

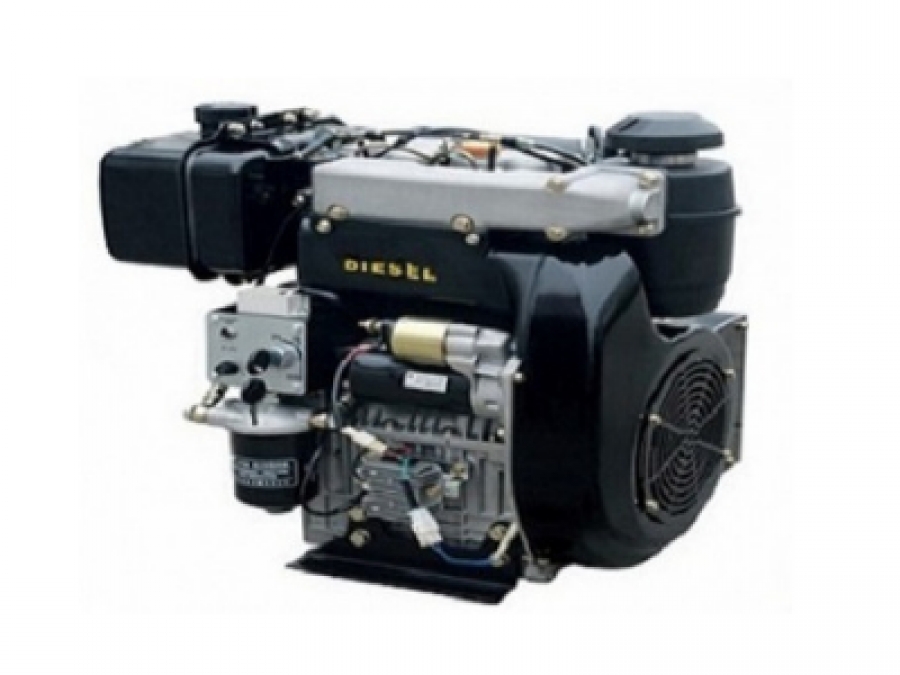

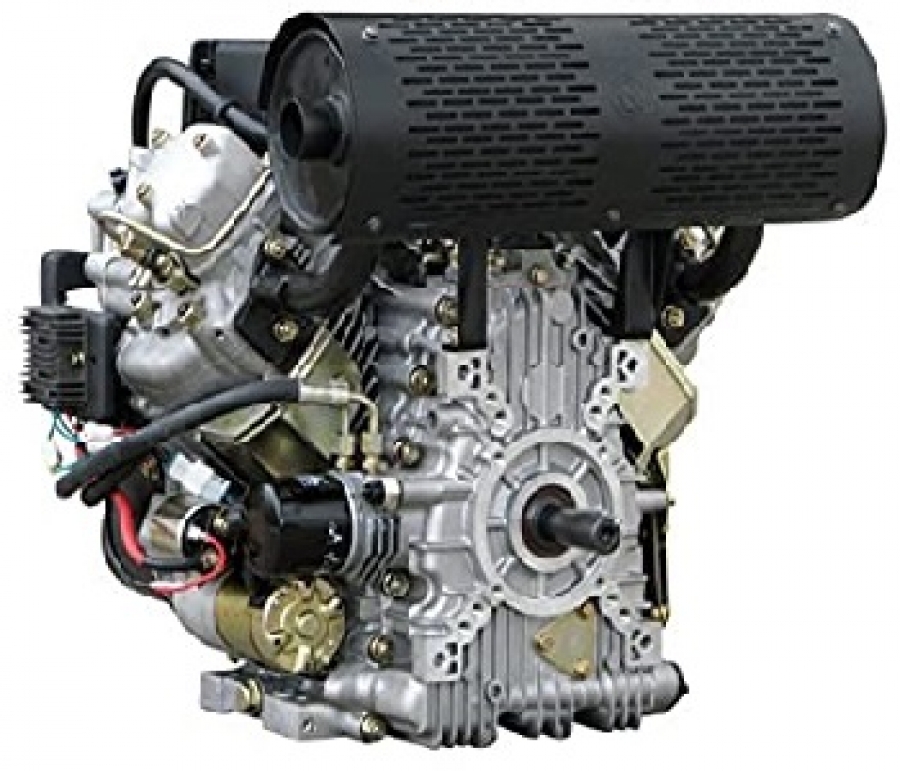

The MK1H/2H series diesel engine for commercial water pump was designed as part of a joint operation between SMAN and Austria AVL. We produced a reinforced design and 4-valve upgrade in 2005 when we cooperate with The Southwest Research Institute (SwRI). All parts are designed and checked according to 16kW outputs and it has an applicable power range of 9-16kW with a large reliability margin. The engine provides good fuel economy and this is the most technically advanced engine in Malaysia. It has been selling well for over 20 years, with production of more than 1 million sets. This is the idle matching power for 9-16 kW water pump.
Outline dimensional drawing
Specification
|
Model |
MK1H12H |
MK2H17H | MK2H20H |
|
Number of Cylinders |
1 |
2 | 2 |
|
Power (kW) |
8.5 |
13 | 15 |
|
Max power (kW) |
9 |
14 | 16.5 |
|
Speed (RPM) |
3000 |
3000 | 3000 |
|
Max speed (RPM) |
3600 |
3600 | 3600 |
|
Intake Way |
Natural |
Natural | Natural |
|
Displacement (L) |
0.668 |
0.875 | 0.997 |
|
Bore / Stroke |
100x85 |
88 x 72 | 92 x 75 |
|
Operation Hours |
Normal/Max: 12/24h |
Normal/Max: 12/24h | Normal/Max: 12/24h |
|
Oil Capacity (L) |
2.1 |
1.7 - 2.3 | 1.8 - 2.8 |
|
Fuel Consumption at Full Load (L/hr) |
2.5-3.5 |
3.9 - 4.5 | 4.1 - 4.6 |
|
Cooling Method |
Air Cooled |
Air Cooled | Air Cooled |
|
Lubricating Method |
Pressure cycle and Splash composite |
Pressure cycle and Splash composite | Pressure cycle and Splash composite |
|
Stating Method |
Electric Starting 12V / 36 - 60Ah |
Electric Starting 12V / 36 - 60Ah | Electric Starting 12V / 36 - 60Ah |
|
Net Mass (kg) |
58 |
60 | 78 |
Scope of Supply:
Radiator, 24V starter motor, Engine shaft / Control panel: Customer’s request.
These engines have improved performance and combustion efficiency. The characteristics such as high torque and heavy duty construction makes these engines a right choice for fire fighting applications. Engines series comprises of 6 cylinder 4 stroke compression ignition type engines. These engines are subjected to rigorous performance tests prior to the dispatch to ensure that the performance ratings are achieved as required by the design specifications.
