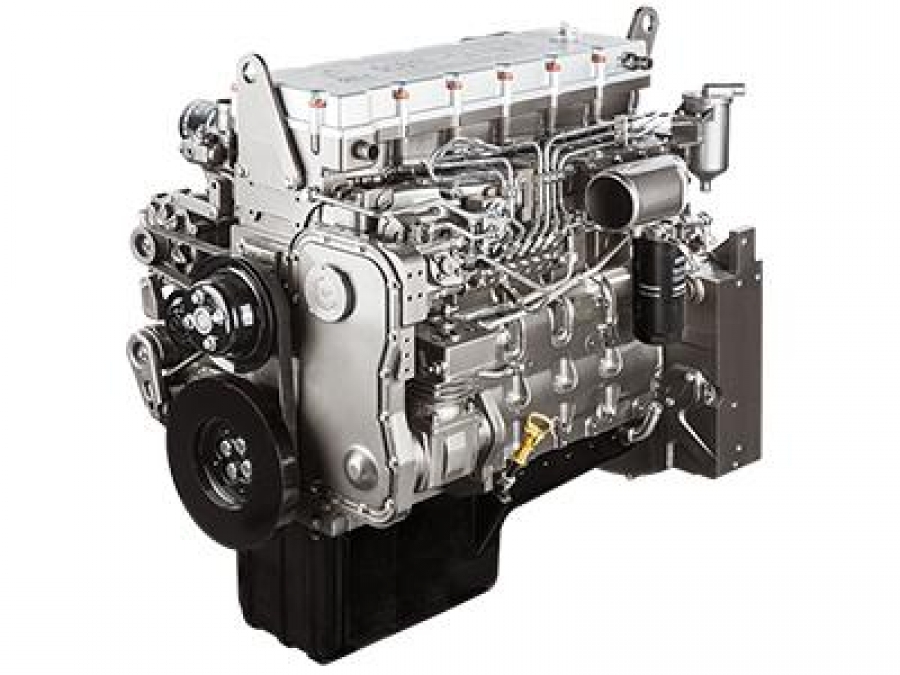

The SD series engine is a preferred power source for large tractors and other agricultural equipment. It is an advanced engine with a new design and advanced technology, featuring a high reliability, low fuel consumption and a fast transient response. The engine torque reserve coefficient is greater than 35% with a power range of 180-360PCS, thus meeting Tier III, V off-road emission standards.
The SD series engine prototype was jointly designed by SMAN and AVL (Austria) based on domestic fuel quality and user habits. In 2005,SMAN carried out a reinforced design and 4-valve upgrade in cooperation with Southwest Research Institute (SwRI) of the United States. In accordance with the American heavy-duty diesel engine standards, the SD series engine is designed as an environmentally friendly power product that meets higher emission requirements. The SD series engines are popular, with more than 1,500,000 sets in circulation.

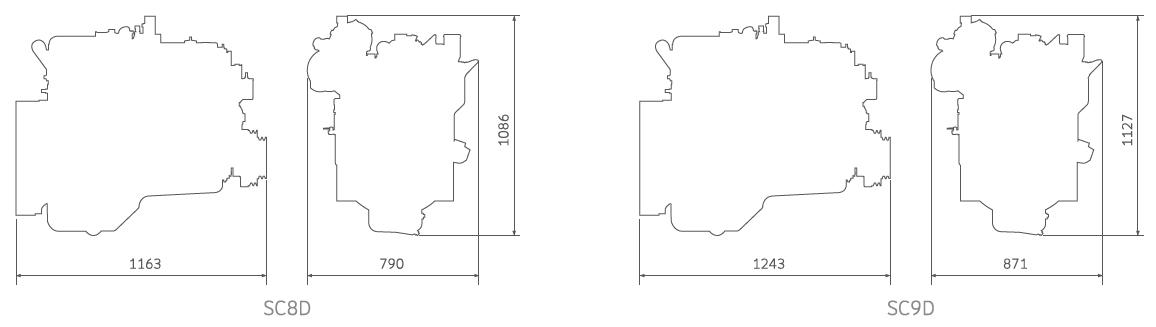

Outline dimensional drawing
Technical parameters
| Diesel Engine | Engine Model | Displacement (L) | Aspiration | Rated Power | Peak Torque (N.m) |
Solution | Emissions Level | |
| kW | r/min | |||||||
| 8SDK/9SDF | 8SDK180G3/4 | 8.3 | TAA | 110.3 | 2200 | 750 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 8SDK/9SDF | 8SDK190 G3/4 | 8.3 | TAA | 118 | 2200 | 820 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 8SDK/9SDF | 8SDK200 G3/4 | 8.3 | TAA | 122 | 2200 | 860 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 8SDK/9SDF | 8SDK220 G3/4 | 8.3 | TAA | 132.5 | 2200 | 920 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDK/9SDF | 9SDK210 G3/4 | 8.8 | TAA | 132.5 | 2200 | 910 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDK/9SDF | 9SDK215 G3/4 | 8.8 | TAA | 136 | 2200 | 900 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDK/9SDF | 9SDK230 G3/4 | 8.8 | TAA | 147 | 2200 | 1000 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDK/9SDF | 9SDK240 G3/4 | 8.8 | TAA | 155 | 2200 | 1040 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDK/9SDF | 9SDK250 G3/4 | 8.8 | TAA | 162 | 2200 | 1110 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDK/9SDF | 9SDK260 G3/4 | 8.8 | TAA | 169.5 | 2200 | 1110 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDK/9SDF | 9SDK270 G3/4 | 8.8 | TAA | 177 | 2200 | 1150 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDK/9SDF | 9SDK280 G3/4 | 8.8 | TAA | 191.5 | 2200 | 1200 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF280 G3/4 | 8.8 | TAA | 177 | 2200 | 1200 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF290 G3/4 | 8.8 | TAA | 184 | 2200 | 1250 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF300 G3/4 | 8.8 | TAA | 191 | 2200 | 1300 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF320 G3/4 | 8.8 | TAA | 206 | 2200 | 1380 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF340 G3/4 | 8.8 | TAA | 221 | 2200 | 1450 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF360 G3/4 | 8.8 | TAA | 265 | 2200 | 1500 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
Parameters of harvester engine
| Diesel Engine | Engine Model | Displacement (L) | Aspiration | Rated Power | Peak Torque (N.m) | Solution | Emissions Level | |
| kW | r/min | |||||||
| 9SDK | 9SDK220G3 | 8.8 | TAA | 162 | 2200 | 950 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDK | 9SDK260G3 | 8.8 | TAA | 192 | 2200 | 1110 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDK | 9SDK270G3 | 8.8 | TAA | 200 | 200 2200 | 1150 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF220G4 | 8.8 | TAA | 162 | 2200 | 950 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF260G4 | 8.8 | TAA | 192 | 2200 | 1110 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF270G4 | 8.8 | TAA | 200 | 2200 | 1150 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF286G3/G4 | 8.8 | TAA | 210 | 2200 | 1200 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF290G3/G4 | 8.8 | TAA | 213 | 2200 | 1250 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF300G3/G4 | 8.8 | TAA | 220 | 2200 | 1300 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF320G3/G4 | 8.8 | TAA | 235 | 2200 | 1380 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF330G3/G4 | 8.8 | TAA | 243 | 2100/2200 | 1380 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF340G3/G4 | 8.8 | TAA | 250 | 2100/2200 | 1450 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
| 9SDF | 9SDF360G3/G4 | 8.8 | TAA | 265 | 2200 | 1500 | CRS+DOC+DPF+SCR | China Ⅲ, China Ⅳ |
Features

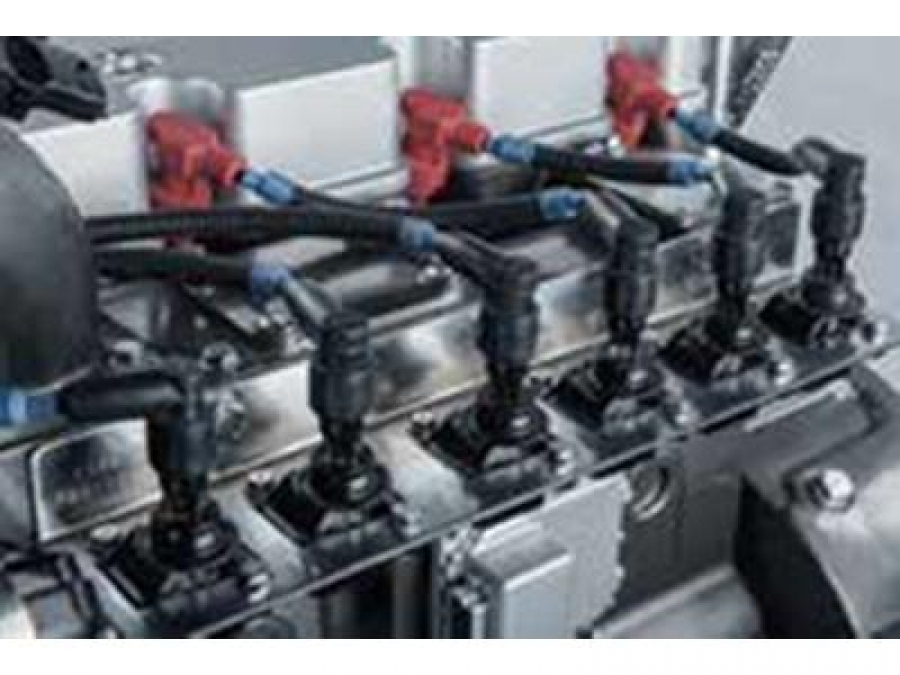

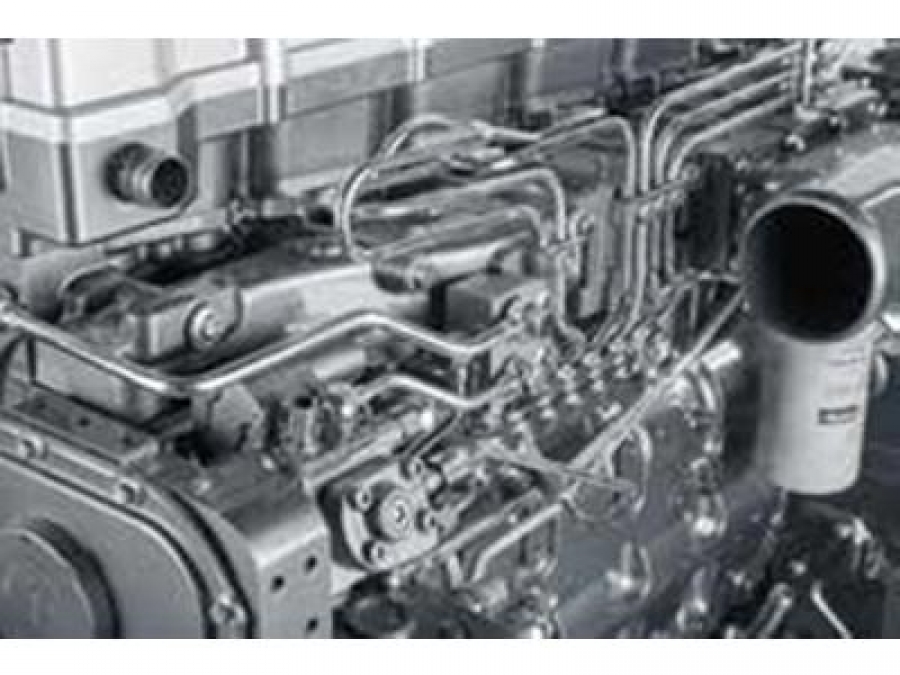

| Fuel system | It utilizes a DENSO electronic control system with the injection pressure of 2,000bar. The 7-hole injection nozzles are ceramic coated. The precisely controlled multiple injections and vertically, centrally placed injectors result in a uniform fuel atomization and excellent combustion. | The fuel consumption is 10-15% lower than similar products, extending the engine life. It fulfills China III, China IV, and above off-road emission standards. |
| Aspiration method | The 2-valve and 4-valve products are optional. Along with an optimized combustion chamber and swirl ratio airway, the turbocharger is chosen for its working condition, power and torque requirements. It increases air intake efficiency and combustion efficiency. The power density is high and load transient response is fast. The torque reserve is no less than 35%. |
The energy consumption and operating cost are both low. It features a fast load transient response, strong power, and excellent adaptability to any work condition. |
| Design features | Incorporated with AVL and SwRI, the engine is a high-quality equipment piece that meets North American heavy-duty diesel engine standards. It is designed with a high strength cylinder head and engine block, 4-valve structure, and 180bar peak pressure. All parts of engine comply with the requirements of a 295kW engine. With the help of an integrated design, the D series engine parts are 20% less than the parts of a conventional diesel engine. It has a simpler structure and smaller size than diesel engines of the same power on the market. |
It is flexible, durable, and reliable with minimal downtime. |
| Reliability features | Based on the design of a 295kW diesel engine, the SD series has a power range of 180-360PS. It demonstrates the engine's reliability and operating margin. The advanced machining, assembly lines are controlled by an MES system. Learning from Volkswagen, our engine management system ensures consistent product quality. All engine parts and accessories are supplied by international premium brands. As the first choice for large tractors, the SD series engine has been sold for more than 10 years. |
With the mainstream engineering design, it is strong, durable, and reliable. |

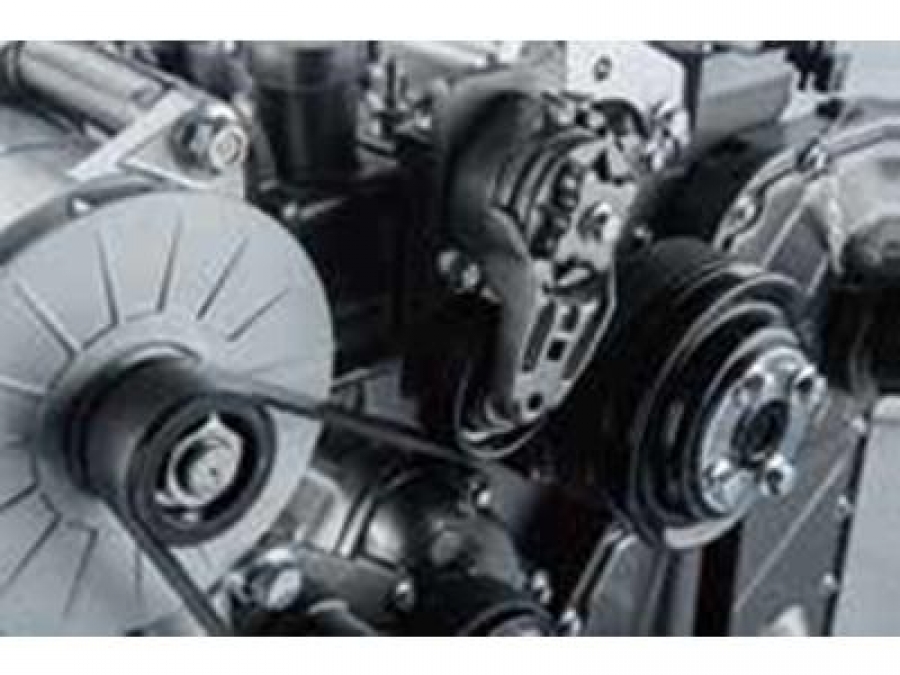

| Matching adaptability | The SD series engine is available with the displacement of 8.3L and 8.8L, 2-valve and 4-valve, fuel sources of diesel and natural gas. Without starting aids (such as an air intake heating device), the engine starts at a cold temperature of -15℃. Depending on the customer's working condition, the matching optimization and customization of powertrain is available. There are multiple configurations for flywheel, flywheel housing, engine, air compressor, steering pump and other peripheral components. The oil pan and PTO are available in various structures and types. |
It features an exceptional environmental adaptability, usable for a wide scope of applications. When it comes to power performance and fuel economy, the D series engine is exceptional. |
| Maintenance | By using electronic control system, it can realize intelligent, real-time diagnosis. There are more than 1,500,000 sets in circulation. The service outlets nationwide offer dependable maintenance service and an extensive inventory of spare parts. |
It features low maintenance costs. |
