Description

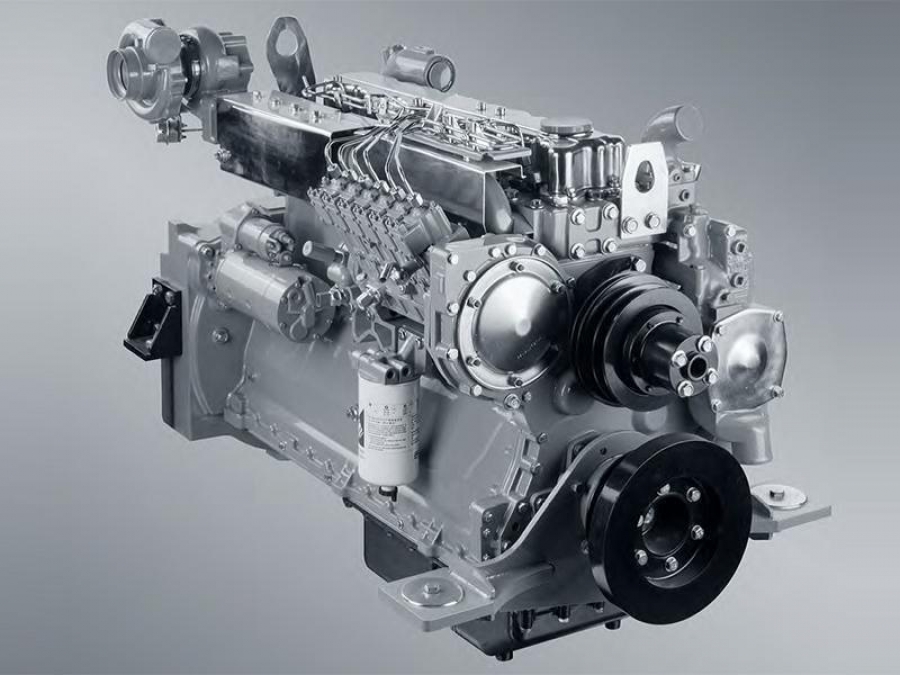

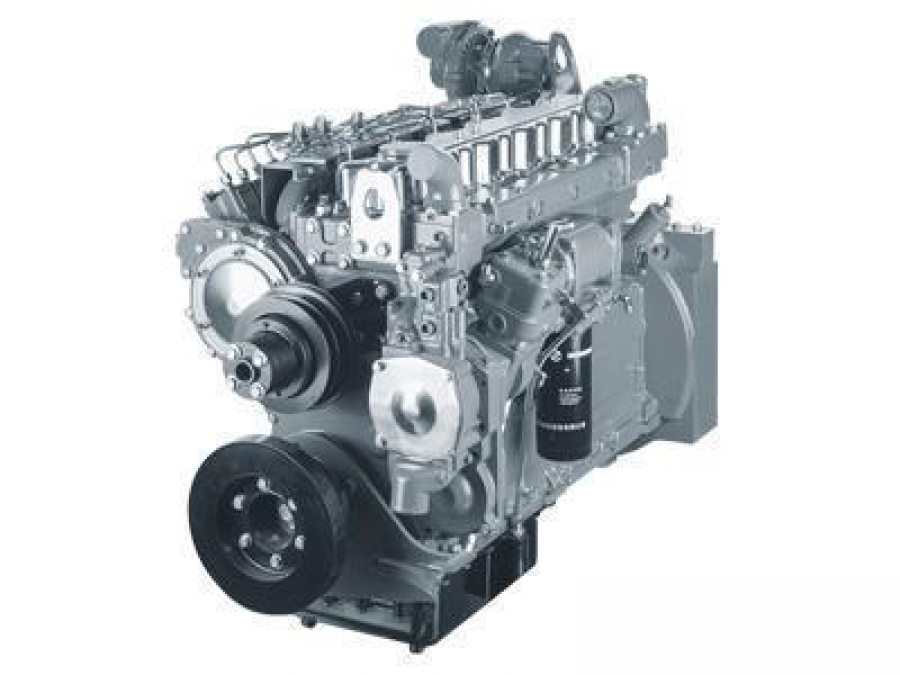

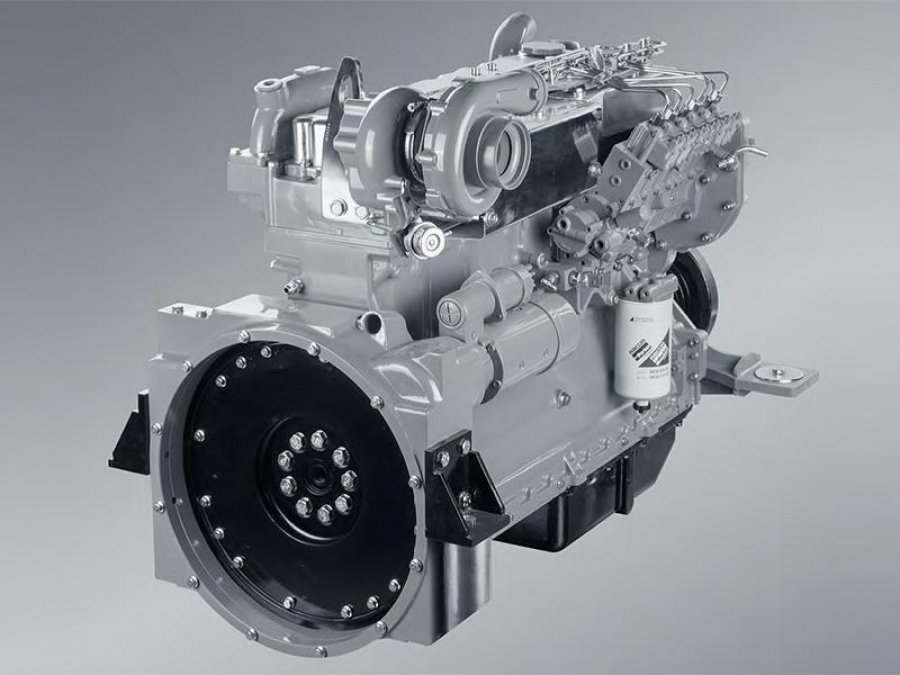

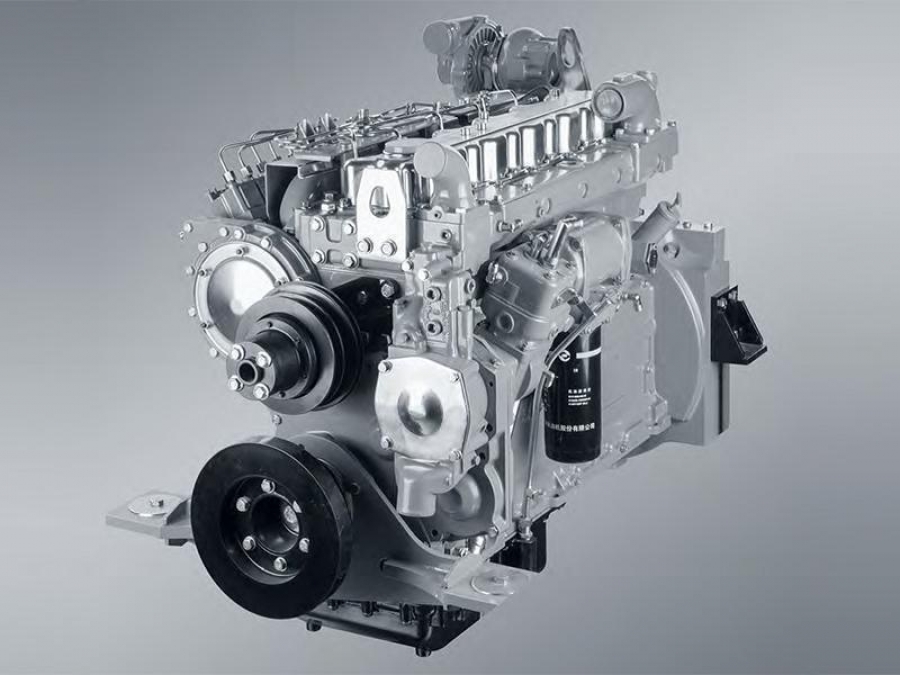

The SC series heavy equipment engine is regarded as the top choice for construction machinery, due to its reliability. With a power range of 135 KW to 235 KW, it satisfies Tier III emission standards, making it the preferred power choice for Malaysia exported construction equipment and top domestic customers.
This SC series engine incorporates the 3306 series diesel engine technology from the American company CATERPILLAR and also introduces the main processing, inspection and testing equipment of this series of products. In 2006, our company worked with the German company FEV to upgrade this engine series, thus improving its performance, reducing fuel consumption and meeting higher emission requirements. This achieved a combination of adaptability, economy and high reliability. The cost performance of this product was also improved, making it a popular choice on the market.
Technical parameters
| Diesel Engine | Engine Model | Displacement (L) | Aspiration | Rated Power | Peak Torque | Solution | Emissions Level | ||
| kW | r/min | N*m | r/min | ||||||
| 11SC | 11SCB184 | 10.5 | TA | 135 | 1850 | 950 | 1300 | EGR | China III |
| 11SC | 11SCB195 | 10.5 | TA | 140 | 1900 | 900 | 1400 | EGR | China III |
| 11SC | 11SCB200 | 10.5 | TA | 147 | 2200 | 850 | 1400 | EGR | China III |
| 11SC | 11SCB200.1 | 10.5 | TA | 147 | 1850 | 1000 | 1300 | EGR | China III |
| 11SC | 11SCB220 | 10.5 | TA | 162 | 2200 | 1000 | 1400 | EGR | China III |
| 11SC | 11SCB220.1 | 10.5 | TA | 162 | 2100 | 1050 | 1400 | EGR | China III |
| 11SC | 11SCB220.2 | 10.5 | TA | 162 | 2000 | 1100 | 1400 | EGR | China III |
| 11SC | 11SCB240 | 10.5 | TA | 175 | 2200 | 1030 | 1400 | EGR | China III |
| 11SC | 11SCB240.1 | 10.5 | TA | 175 | 2000 | 1130 | 1400 | EGR | China III |
| 11SC | 11SCB270 | 10.5 | TA | 200 | 2200 | 1050 | 1400 | EGR | China III |
Note
| Bore ×stroke (mm) | Aspiration | Engine Type | Compression ratio | Weight | Solution |
| 11SC 121x152 | TA Turbocharged and intercooled | In-line, six cylinders | 16.5:1 | 960kg | CRS electronically controlled common rail EGR mechanical pump ＋ external EGR |
Features
| SC series | Technical features | Customer value |
| Fuel system | P series oil pump + external EGR solution | 1.Low cost 2. It meets Off-Road Tier Ⅲ emission standards. |
| Aspiration method | The turbocharger and intercooler are selected according to operating conditions. The power and torque are chosen for a higher air intake efficiency and fuel economy. | 1. The power is strong, featuring a fast transient response and easy operation. 2. The specific fuel consumption is low. |
| Design features | 1. The prototype engine was the CAT 3306 engine with a license, and featured a displacement of 10.5L, making it a popular choice for power in construction machinery. The maximum torque reserve is 50%. 2. In 2006, in working with the German company FEV, the performance upgrade was conducted in order to optimize the designs in the fuel system, cylinder head airway, camshaft profile and combustion chamber. 3. The design concept for common wear parts and the overall unit are used. Important rubbing parts are both reliable and durable. |
1. The design is reliable and durable. 2. It is popular with international customers. |
| Reliability features | 1. We introduced a complete set of drawings and processing, inspection and testing equipment from Caterpillar. 2. By referencing an SPS system guarantee from German Volkswagen manufacturing standards, the product consistency is better. 3. The average failure period is over 4000 hours, and the overhaul period is more than 10,000 hours. 4. We have sold more than 1 million engines in this series. |
The quality is excellent. |
| Matching adaptability | 1. The plateau adaptability is high without no power loss, even at an altitude as high as 4500m. 2. Without an auxiliary air intake heating device, the cold starting temperature is -15℃. 3. Based on the assembly configuration and actual operating conditions, the engine and assembly are conducted with matching optimization and customization. 4. Various configurations for flywheel, flywheel house, engine, air compressor, steering pump and other peripheral parts are available. |
The environment adaptability is strong with little downtime, and the engine series features an outstanding performance and wide application range. |
| Maintenance | Maintenance networks and accessories supply networks are spread all over Malaysia. | It is easy to get accessories with convenient service. |
